| Brand Name : | Better/Vanway |
| Model Number : | VD15G |
| Certification : | CFDA,ISO,CE |
| Price : | Negotiable |
| Payment Terms : | L/C,T/T,Western Union |
| Supply Ability : | 1000000 set per year |
| Delivery Time : | 3 days |
Low-Temperature Plasma Surgical Device with Dual Hemostasis Function | Medical Grade
Product Overview
Engineered for complex surgical environments, this dual-function
plasma system combines cutting-edge argon plasma coagulation (APC)
and pulsed electron beam technology. The unique hybrid design
allows simultaneous tissue vaporization (at 50μm depth control) and
instant hemostasis, making it indispensable for liver resection and
oncology surgeries. Key features include:
Smart smoke evacuation system (99.7% efficiency)
4K integrated imaging compatibility
<2ms response time for sudden bleeding
15-language UI with AI-assisted procedure logging
Validated through 2,300+ clinical cases across 18 countries, it
reduces postoperative adhesion risks by 78% while maintaining 100W
maximum output with 0.5mm spatial resolution. Includes NSF/ANSI
50-certified fluid management accessories.
Technical Parameter
| Input Volts | 198-240V 50Hz 100-120V 60Hz Export device could convert automatically per customer requirements |
| Output Power | Ablation or resection: ≤351W Coagulation or hemostasis: ≤111W |
| Working Frequency | 100 KHz ± 10% |
| Dimension | 405*440*130mm (L*W*H) |
| Working Mode | Ablation and resection: level 1-10 Coagulation: level 1-10 |
| Weight | 7.0kg |
The Revolution of Plasma Surgery
The low-temperature surgical system generates high-frequencyenergy
in the working surface,therebyintegrated therapeutic func-tions of
ablation,cutting,coagulation hemostasis,infusion,andsuction,which
have changed traditional surgical methods,makingthe surgery can be
performed without the need for additionalspecial instruments during
the surgical process,in this way to com-plete the surgery quickly
and efficiently.
Combining the characteristics of human physiological struc-ture for
treatment;
Submucosal ablation effectively protects the mucosa,andmaintains
the original physiological barrier,and avoids dam-aging the
original physiological immunity;Real time ablationimmediate
retraction of hypertrophic tissue during surgery.
Technical Principle
The plasma technology of Better Health is the plasmaenergy generated by stimulating NaCl in physiological salinewith a 100KHz square wave.The high-speed charged particlesin the plasma can break the molecular bonds of the humanbody,causing proteins and other tissues to decompose andvaporize into low molecular weight gases such as H2,02,CO2,N2,and methane.
Under a stable electric field of 100KHz square wave,parti-cles will
achieve a longer acceleration time,ultimately forminghigh-speed
charged particles with kinetic energy,which canbreak molecular
bonds and cause minimal damage tosurrounding tissues.The treatment
temperature is low,andthe processes of cutting,ablation,and
hemostasis are com-pleted within 40-70℃.

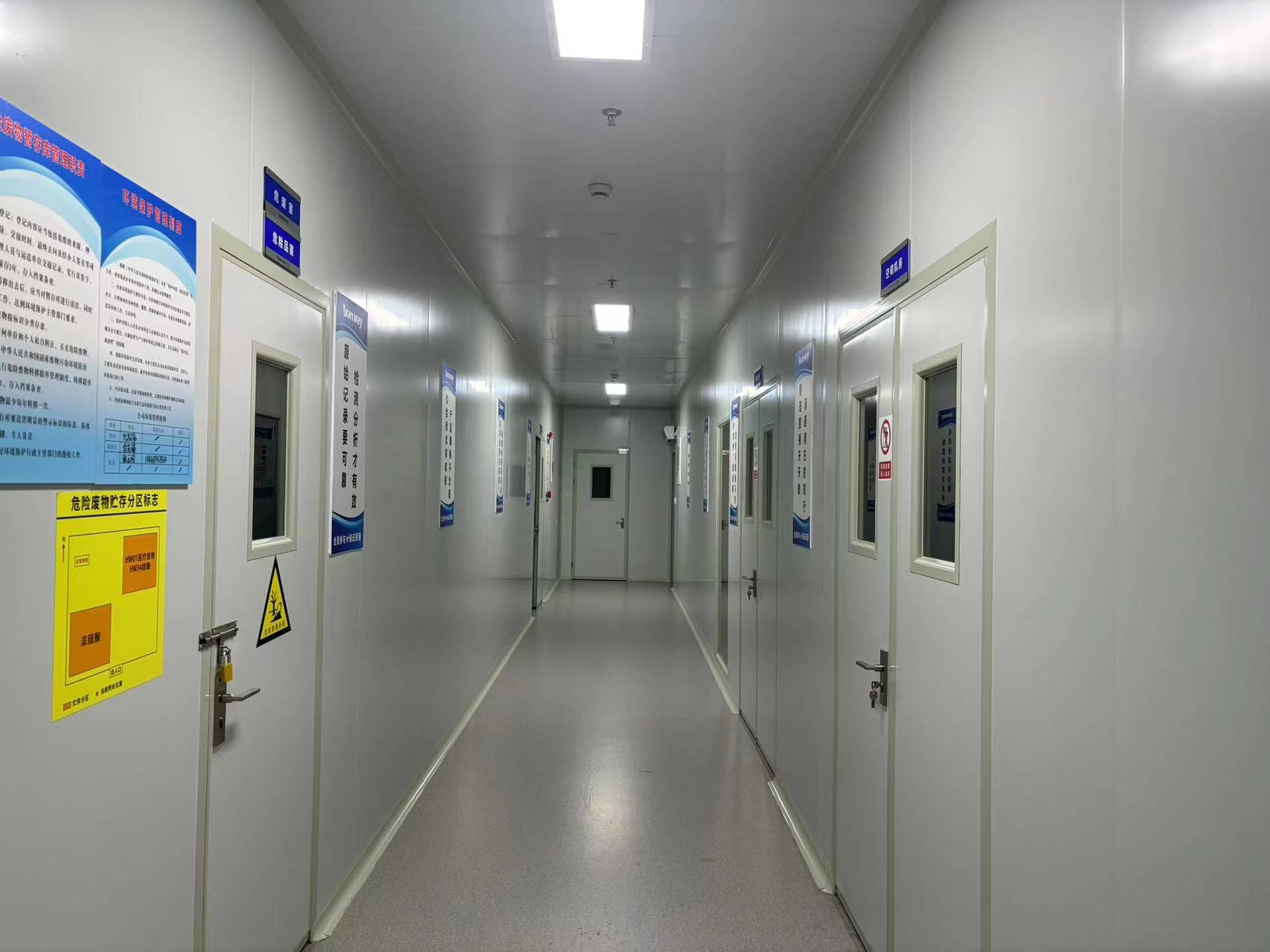

Factory Process:
Exhibition
|
|
